iGRAIN Network System
Wireless Grain Monitoring via Radiohub
The iGRAIN Temperature Monitoring System is modular in its design and can be configured to small or big silo installations according to the need.
The iGRAIN Master-Radiohub can connect to a maximum of 32 Sub-Hubs. iGRAIN Sub-Hub has 6 inputs for 6 temperature Sensor Cables or moisture sensor cables.
The Wireless Grain Monitoring System can literally be configured to suit any number of grain bin with any number of Sensor Cables. The Master-Radiohub has a build-in display that displays continuously how many Sub-Hubs, Sensor Cables and Sensors it is communicating with. This makes it the preferred system in the industry because the system can be monitored, operated, commissioned and serviced without the need to connect a PC.
Easy Overview – Wireless Grain Monitoring
The system interfaces with the iGRAIN Dashboard Manager software on a PC or in the cloud. The iGRAIN Master-Radiohub gives an easy overview of all Sub-Hubs and how many sensors are reading in each port.
Technical Specifications

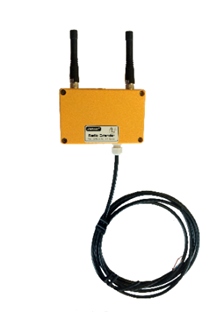

Master-Radiohub:
- 4 input ports for up to 32 Sub-Hubs, and up to 192 Sensor Cables.
- One Master-Hub communicates with up to 1000 temperature sensors.
- Master-Hubs can be put in the series up to 15 units.
- RS-485 Modbus wireless communication with PC or Cloud.

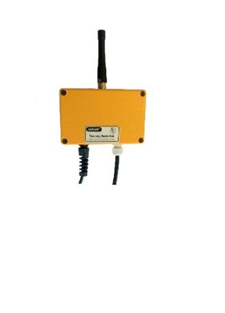

Sub-Hub:
- 6 inputs from temperature or moisture sensor cables.
- Connects to the Master-Radiohub via the iGRAIN data-bus.
- Build-in power indicator for an easy system check.
Contact iGRAIN – Wireless Grain Monitoring
We have a large and exclusive pool of scientific and practical know-how from tailoring and applying post-harvest solutions in any climate zone worldwide, and we shall be honored to serve you. Please don’t hesitate to contact us.”
